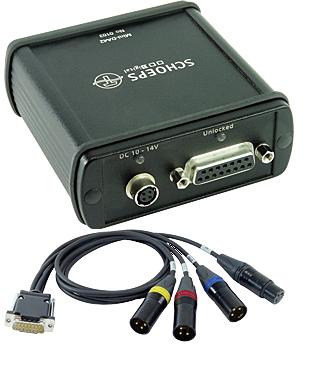

AES42 Powering Box with digital and analog Outputs Mini-DA42 - powers digital microphones - has both digital and analog outputs - inputs and outputs are available through a Sub-D breakout cable - all control elements are on the front side

The Mini-DA42 serves for powering digital microphones (especially the SuperCMIT) and for converting their output signals to analog. It allows to operate digital microphones at devices which only offer analog inputs.

Inputs:
- AES42, Mode 1 or AES3 (XLR-3F, 110 Ohms)

Outputs (available through included Sub-D breakout cable):
- AES3 (XLR-3M, 110 Ohms)
- 2 analog (XLR-3M), balanced, non-floating, maximum cable length: 300 m

Indicators:
Green LED for power; red LED for "unlocked" (turns off when a digital microphone or another device with AES3 signal is connected and the circuitry of the Mini-DA42 locks on to that signal).

Power:
DC 12 - 18 V / 200 - 500 mA, available through included AC adapter for 100 - 240 V, 50 / 60 Hz with HIROSE plug

Dynamic range of the Mini-DA42:
112 dB (A, RMS), >98dB (CCIR, q-peak)

Dynamic range of the SuperCMIT with the Mini-DA42:
>107 dB (A, RMS), >96dB (CCIR, q-peak)
