NEMESIS OSCA-O4 4 CHANNEL OSC GPO OUTPUT

NEMESIS OSCA-O4 4 CHANNEL OSC GPO OUTPUT

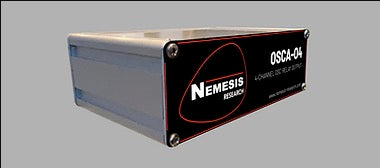

OSCA-O4 4 Channel OSC Relay GPO Output





The OSCA-O4 allows control only limited by your imagination of devices that require a simple contact closure to activate command by converting the OSC command to relay close, relay open, or momentary action. Applications range from sending a command to the GPI input of non-OSC equipped mixing consoles to opening a door lock, triggering a Kabuki drop, mechanical automation control and interfacing with applications like ONLX Ctrl Suite.



The OSCA-O4 is incredibly easy to program - simply plug it into your laptop, type in the IP address and a simple but powerful user interface takes you through all the steps. If the Osca OSC network is connected to the internet, remote programming and triggering is possible via VPN, together with system updates and future upgrades. Fully compatible with all 3rd party OSC commands and the Nemesis OSCA range.




Key features:

4 independent volt free GPO relay control outputs

Latching or momentary action

Contacts rated at 0.5 amp 60VDC or 100VAC (max)? each

Relay LED status lights

Outputs via industrial Phoenix style connector (matching part number 1757307)

Simple yet powerful programming via embedded user interface (no need for set up programs or internet connection)

Fully compatible with all 3rd party OSC commands and Nemesis OSCA Button box range

Internet enabled for updates and upgrades

DHCP served or fixed IP address

Industrial Ethercon network connector

Multicolour LED showing network and power status

Recessed “reset” button

Power over ethernet enabled (POE IEEE 802.3 compliant)

Alternative 5VDC powered (USB C-Type)



Supplied in the box:

OSCA-O4

1m CAT5 cable

Mating Phoenix style connector
