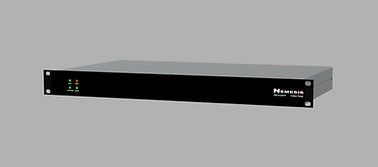

NEMESIS OSCA-DXVF DMX VIDEO FADER UNIT

Building on the success of the proven Nemesis DMXVF video fader the new OSCA-DXVF adds OSC and other advanced features  whilst still maintaining all the old favourites.

The OSCA-DXVF is a Dual Channel DMX and OSC Controlled Video Fader designed to allow users to restrict light emission levels from monitor screens - particularly those mounted in an auditorium - when darkness is required during a production.

The OSCA-DXVF maintains video sync signal during a blackout avoiding ugly 'Signal Lost' messages which would otherwise be shown on modern LCD screens.

The exact brightness can be faded directly via OSC or DMX from 0 to 100% in 1% increments, effectively treating the video screen brightness like a conventional lighting fixture.

The OSCA-DXVF can form part of an extensive OSC network allowing lighting, sound, stage management and other departments to all control screen brightness if required.

With the addition of an OSCA R5 button box different presets or states can be controlled at the push of a button allowing, for example, a musical director to dim certain screens as-and-when they wish.

Under DMX control the OSCA-DXVF can directly interface with all modern lighting consoles.

Key Features:

VIdeo:

• 2 × Independent composite video channels

• In-built 4-output Video Distribution Amplifier per channel

• Fades input signal to black while retaining sync signal

Control:

• DMX mode mode

• OSC mode

• DMX with OSC fallback mode (OSC automatically takes over if DMX stream not detected)

• Manual mode

• Entirely separate channels - control one with DMX and the other with OSC

• Each channel controlled by the same or separate OSC or DMX messages

• DMX invert: video mixer (where max DMX  = max video)  or video blackout (where max DMX  = video blackout)

• DMX thru

• Remote set up and control over ethernet

General:

• 1U 19" rack mount

• Front Panel LED display showing current status

• 75? Video BNC In/Outs, 5-pin XLR DMX Connections with link-thru, industrial Ethercon network connector

• Fully compatible with all 3rd party OSC commands and Nemesis OSCA range

• Config download, backup and restore

• Internet enabled for updates and upgrades

• DHCP served or fixed IP address

• Industrial Ethercon network connector

• Multicolour LEDs showing network, DMX, action and power status
