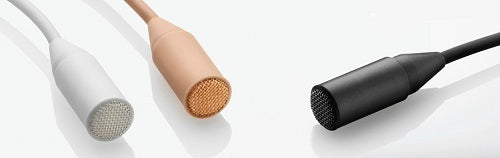

DPA 4071 CORE+ Omni Mic, Presence Boost, Loud SPL, MicroLock

DPA 4071 CORE+ Omni Mic, Presence Boost, Loud SPL, MicroLock

Specifications

• Impedance: 40 ohm
• Cable drive capability: Up to 300 m (984 ft)
• Power supply:
  • For wireless systems: Min. 5 V – max. 50 V through DPA adapter
  • With DAD6001-BC / DAD6024 / DAD4099: 48 V phantom power ±4 V for full performance
• Connector: MicroLock
• Color options: Black, beige, or white
• Microphone weight: 9 g (0.32 oz) including cable and MicroDot connector
• Microphone diameter: 5.4 mm (0.2 in)
• Microphone length: 17 mm (0.67 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in)
• Polarity: Positive sound pressure produces positive voltage on MicroDot pin
• Operating temperature range: -10 to 45°C (14 to 113°F)
